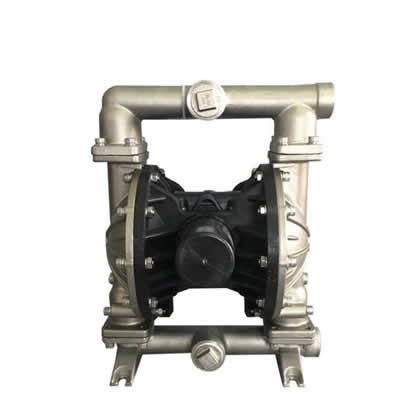

Pneumatic diaphragm pump equipment system internal parameters

Pneumatic diaphragm pump internal system A system of diaphragm pump equipment consisting of one or more double-sided pumps, such as a pneumatic double diaphragm pump. The collection tubes on the pump are separated so that each side of the pump pumps out one of the components of the multi-component material, and an accumulator is connected to the output on both sides so that the out-of-phase output of the pump becomes in-phase. Diaphragm isolation valves can be selected to exit on each side of the pump to prevent backflow of mixed materials. If a mixing ratio other than 1:1 is needed, more than one of these pumps can be used together to achieve a variety of mixing ratios.

Diaphragm pump diaphragm installation method, it does not affect the volume change requirements of the pump, and make full use of the diaphragm excellent compression performance, in the geometry of the diaphragm, it does not need to increase what costs and workload, and greatly improve the service life of the diaphragm, to ensure the normalization of production and improve the quality of product production, it can be applied to a variety of diaphragm pump diaphragm installation.

Diaphragm failure monitoring system to detect diaphragm leaks in diaphragm pumps. The system includes a pump that has a studio containing a working fluid; A pumping chamber for pumping materials into and out of the pump; And a diaphragm to isolate the studio from the pumping room. A first optical fiber is connected to the studio to transmit an optical signal through the working fluid. A second fiber is connected to the studio to receive optical signals from the first fiber. An electrical signal building device establishes the first electrical signal as the optical signal from the first fiber passes through the uncontaminated working fluid to the second fiber. This electrical signal building device, when the optical signal from the first fiber, through the contaminated working fluid to the second fiber, the establishment of a second electrical signal. When a second electrical signal is established, leakage of contaminated material through the diaphragm into the studio can be detected.
