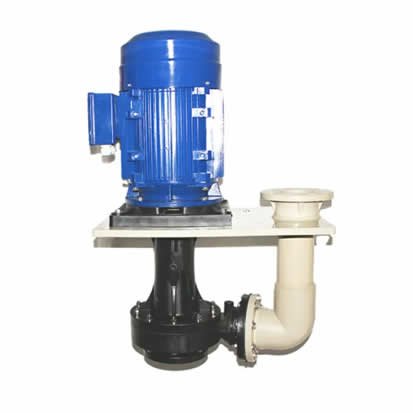

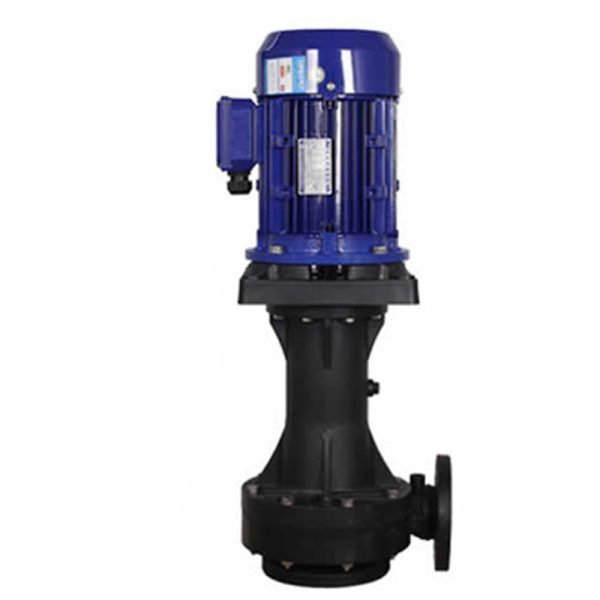

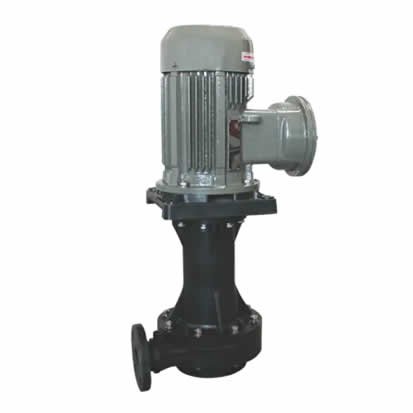

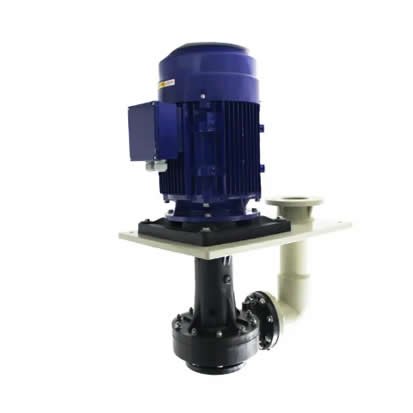

Vertical Chemical Pump (FRPP) 1HP Max. Flow 175LPM

Description

1. Sealless Structure. The DT/DS series vertical sealless pump is installed vertically with the motor above the liquid surface. In this way the pump does not need any mechanical seal that is a source for leakage problem.
Highly Corrosive Resistant FRPP materials to withstand high temperatures and high corrosive chemical liquids.
Dry Running Safe. As there is no contact, thus no friction between the pump body and the impeller, dry running for a long period is allowed and would not cause any damage to the pump.
Material is Fiber Reinfored Polypropylene

APPLICATIONS for Chemical Vertical Pump
Widely recognized within the aerospace and automotive industries for the re-circulation of hydrochloric and nitric acid PBC etch tanks. The pump is also commonly installed on fume scrubber towers, effluent treatment pits and neutralization pits.
Transferring and circulating for plating solvents of the filter.

Heat exchanger circulation.

Press and reaction tank transfer.

Reaction mixing tank circulation.

Nickel electroplating.

Petrochemical and Pharmaceutical industry.

Any Hazardous Chemical Applications

2. Model Indication:

DT- 50- VK- 5- 6-  V-  F
①  ②   ③   ④ ⑤  ⑥  ⑦

Model	Inlet/outlet （mm）	HP	Capacity (LPM) 50/60HZ	Head (m) 50/60HZ	Max Capacity (LPM) 50/60HZ	Max Head (m) 50/60HZ	Weight(kg)
DT-40VK-1	50/40	1	175/120	6/8	250/200	11/12	29
DT-40VK-2	50/40	2	190/300	12/10	300/370	16/21	38
DT-40VK-3	50/40	3	270/350	12/14	375/480	20/20	41
DT-50VK-3	65/50	3	330/300	14/15	460/500	24/29	41
DT-50VK-5	65/50	5	470/550	14/15	650/710	24/29	55
DT-65VK-5	80/65	5	500/650	14/15	680/800	24/29	55
DT-65VK-7.5	80/65	7.5	590/780	16/18	900/930	26/36	95
DT-65VK-10	80/65	10	590/890	18/20	950/1050	28/39	106
DT-100VK-15	100/100	15	1000/1200	27/25.5	1760/1760	39/44	155
DT-50VP-3	65/50	3	290/300	12/12	350/430	20/19	41
DT-50VP-5	65/50	5	400/430	14/15	470/490	23/27	55
DT-65VP-7.5	80/65	7.5	450/600	18/16	785/790	26/29	95
DT-65VP-10	80/65	10	570/800	18/18	950/950	26/37	106
DT-100VP-15	100/100	15	800/1000	29/29	1680/1730	38/43	155

specification（Small capacity）：

Model	Inlet/outlet （mm）	HP	Phase	Capacity (LPM) 50/60HZ	Head (m) 50/60HZ	Max Capacity (LPM) 50/60HZ	Max Head (m) 50/60HZ	Weight(kg)
DS-15VK-1/15	20/15	1/15	1	20/25	0.2/0.4	24/32	1/1.5	3
DS-20VK-1/6	25/20	1/6	1	20/40	2/2	60/75	3/3	4
DS-20VK-1/4	25/20	1/4	1 or 3	50/60	4/5	70/85	6/8	13
DS-20VK-1/3	25/20	1/3	1 or 3	60/70	4/5	80/100	6.5/9	13
DS-20VP-1/6	25/20	1/6	1	18/36	2/2	55/70	3/3	4
DS-20VP-1/3	25/20	1/3	1 or 3	50/60	4/5	70/85	6/8	13
DS-20VK-1/2	40/25	1/2	1 or 3	100/150	5/4	150/165	8/10	20
DS-40VK-1	50/40	1	3	130/180	8/6	240/225	11/12	20
DS-40VK-2	50/40	2	3	150/260	10/10	290/340	13/18	24
DS-25VP-1	40/25	1	3	160/110	6/7	200/185	11/11	20
DS-40VP-1	50/40	1	3	140/110	6/6	190/175	9/9	20
DS-40VP-2	50/40	2	3	160/130	7/7	225/180	11/12	24
