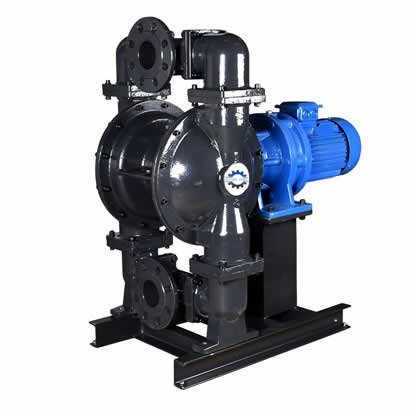

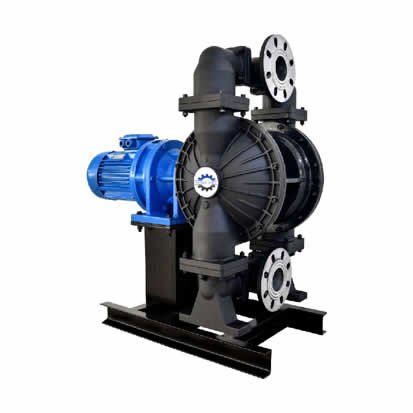

3″ Electric Double Diaphragm Pump made of Aluminum

3″ Electric Double Diaphragm Pump (EODD pump),Max Flow 480LPM,Head 40m with 4kw motor,Head 70m with 5.5kw motor,Materials of wetted parts:Cast steel, Ductile iron, Aluminum alloy, PP, Stainless steel 304 316L, Teflon, PTFE, PVDF

Description

EODD 3 inch Electric-Operated Double Diaphragm Pump

The Saiken brand Electric Double Diaphragm Pump (EODD PUMP) can transfer the most corrosive media, is self-priming and sealless. Electric double diaphragm pumps withstand abrasive particles and even dry running,Double size pipe diameter, can support two sizes of external pipe!

Materials of wetted parts:Cast steel, Ductile iron, Aluminum alloy, PP, Stainless steel 304 316L, Teflon, PTFE, PVDF

Diaphragm and ball materials: PTFE, Teflon, Santoprene, EPDM, NBR, FKM Up to 480 L/min Up to 7 bar

Options: Pressure switch, Built-on frequency inverter.

Features

3 inch (80 mm) inlet/outlet
Delivery up to 127 gpm (480 lpm)
Easy-to-service air valve and ball checks

Benefits

Quick and easy assembly and disassembly design
Easy to service air valve and ball checks
Split manifold option to pump multiple fluids without mixing
Every pump is tested prior to shipping

Overview

Maximum Fluid Flow: 127 gpm (480 l/min)
Maximum Fluid Discharge Pressure: 58 psi (4 bars, 0.4 MPa) / 100 psi (7 bars, 0.7 MPa)
Maximum Size Pumpable Solids: 3/8 inch (9.4mm)
Fluid Displacement Per Cycle: 2g (7.6 litres)
Motor power: 4kw@4.0Bar, 5.5kw@7.0Bar

Wetted parts Material

Cast SteelDuctile IronAluminium AlloyEngineering plasticsStainless steel 304Stainless steel 316Stainless steel 316LPVDF
GQLSPP316P316LF

Diaphragm Material

ButyronitrileSantoprenePolyetherTeflonSuper Teflon
DAMTN
EPDMSantoprene+TeflonSantoprene+Super TeflonPolyether+TeflonPolyether+Super Teflon
STNKH

Valve Ball

ButyronitrileSantoprenePTFEStainless steel 304Stainless steel 316Stainless steel 316LEngineering plastics
DAFPP316P316LS

Valve Seat

ButyronitrileSantoprenePTFEStainless steel 304Stainless steel 316Stainless steel 316LEngineering plastics
DAFPP316P316LS

Advantage:

3″ Electric Double Diaphragm Pump made of Aluminum-China Saiken Pumps

Electric Double Diaphragm Pump (EODD PUMP) Datasheet (Low pressure 4.0Bar):

ModelInlet/Outlet
(INCH)
Max.Capacity
(GPM/LPM)
Max.Head
(M)
Outlet pressure
(BAR)
Motor power
(kw)
SKD-103/8″ (10 mm)3.4/12.84040.55
SKD-151/2″ (15 mm)3.4/12.84040.55
SKD-25A1″ (25 mm)12.7/484041.5
SKD-321.2″ (32 mm)12.7/484041.5
SKD-401.5″ (40 mm)12.7/484041.5
SKD-40A1.5″ (40 mm)43/1624042.2
SKD-502″ (50 mm)43/1624042.2
SKD-652.5″ (65 mm)43/1624042.2
SKD-50A2″ (50 mm)65/2454043
SKD-803″ (80 mm)65/2454043
SKD-1004″ (100 mm)65/2454043
SKD-80A3″ (80 mm)127/4804044
SKD-1255″ (125 mm)127/4804044

Electric Double Diaphragm Pump (EODD PUMP) Datasheet (High pressure 7.0Bar)

ModelInlet/Outlet
(INCH)
Max.Capacity
(GPM/LPM)
Max.Head
(M)
Outlet pressure
(BAR)
Motor power
(kw)
SKD-H-103/8″ (10 mm)3.4/12.87070.75
SKD-H-151/2″ (15 mm)3.4/12.87070.75
SKD-H-25A1″ (25 mm)12.7/487072.2
SKD-H-321.2″ (32 mm)12.7/487072.2
SKD-H-401.5″ (40 mm)12.7/487072.2
SKD-H-40A1.5″ (40 mm)43/1627073
SKD-H-502″ (50 mm)43/1627073
SKD-H-652.5″ (65 mm)43/1627073
SKD-H-50A2″ (50 mm)65/2457074
SKD-H-803″ (80 mm)65/2457074
SKD-H-1004″ (100 mm)65/2457074
SKD-80A3″ (80 mm)127/4807075.5
SKD-H-1255″ (125 mm)127/4807075.5

Electric Double Diaphragm Pump (EODD PUMP) are designed to handle moderately abrasive fluids and suspended solids for intermittent/on-demand and portable applications. They can easily pump slurry, solvents, and high viscosity liquids such as paints and inks. Pump with full bolt structure and wear – resistant corrosion – resistant materials,Good quality, Best price!

If you need more information about Electric Diaphragm Pump, please contact us!
