Diaphragm pump installation scheme

Diaphragm pump pneumatic diaphragm pump and electric diaphragm pump

Diaphragm pump light volume, simple structure, wide range of application, but want to stabilize the performance, need to correctly grasp the diaphragm pump installation plan and execution, if improperly installed, will have an intuitive impact on the pump performance, such as many pneumatic diaphragm pump in the actual use of insufficient suction, pressure fluctuations, jitter is obvious, and so on, are caused by the wrong installation.

About the diaphragm pump installation plan, before installation, pay attention to prepare the relevant accessories, such as pneumatic triplet, filter to ensure the quality of compressed air, pressure reducing valve to adjust the pressure, oil mist lubrication line components, are important configuration can let the pneumatic diaphragm pump performance to maintain stability. In sufficient relevant accessories, the selection of installation position, pneumatic diaphragm pump because there is no need to connect the motor, so the installation position is very wide, usually recommended to give priority to a more open place, in order to facilitate smooth gas supply.

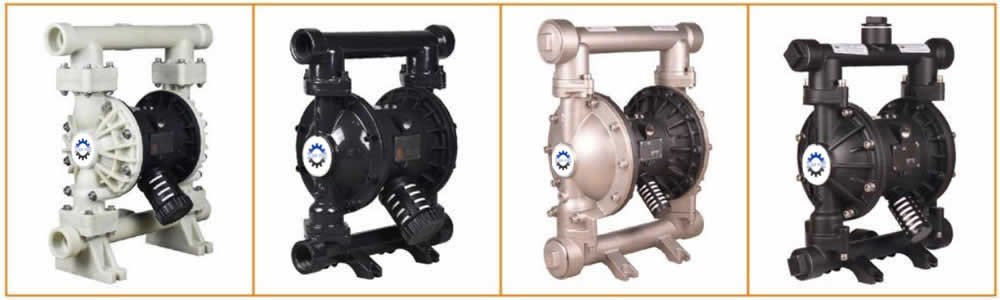

After the installation position is selected, the installation height needs to be determined according to the self-priming performance of the pump. In the pipeline layout, bending should be reduced as far as possible to prevent excessive suction loss. Note that the pipeline needs to be separately set up support frame, and can not be placed directly on the pump body. At present, the pneumatic diaphragm pump supports a variety of material customization. The conventional engineering plastic diaphragm pump is small and lightweight, and there is no need to add additional damping device. If the cast iron or stainless steel diaphragm pump, it is recommended to add cushion at the connection between the pump body and the base.

Overall, diaphragm pump installation is quite simple, only need to pay attention to the size and necessary tools in advance, in the installation process is mainly to pay attention to the safety of equipment and pump protection, consider the follow-up maintenance matters in advance, so it is recommended to install in open terrain, on the one hand is to make the gas supply more stable, On the other hand, there is more operating space in the installation and follow-up if maintenance is needed.

The above content briefly introduces the diaphragm pump installation scheme, as a simple and easy to use pneumatic transportation equipment, only need to have basic mechanical knowledge can be easily installed, if there is any ambiguity in the actual operation can directly consult SAIKEN pump station technical customer service to get more help.
