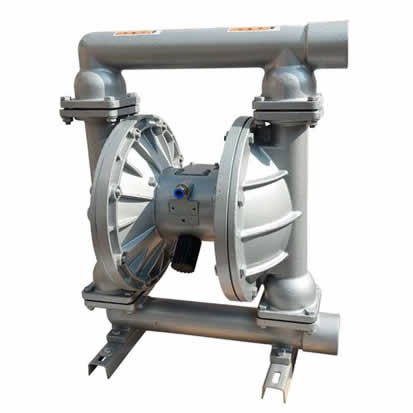

Stainless steel pneumatic diaphragm pump characteristics and application advantages

Stainless steel pneumatic diaphragm pump product features: No electrical spark, can be empty running, self-priming start work, without complex control, simple operation, self-priming height up to 6 meters, can be used by the selection of pneumatic diaphragm pump body shell and diaphragm material to transport different characteristics of strong acid, strong alkali, strong organic solvent liquid medium, can be changed by changing the gas flow speed, can be changed by changing the pressure and transfer height, Can transport high density, high viscosity liquid medium, can be switched at any time outlet, not afraid of blockage, pressure automatic balance (no pressure relief valve), no dynamic seal, no pollution of materials, low shear force, not easy to destroy the material structure, can be diving, mobile, portable pneumatic diaphragm pump use, no rotating parts (or bearings), no mechanical shaft seal, no connector, Low maintenance cost

Stainless steel pneumatic diaphragm pump material chamber separation set a one-way ball valve, because the wall reciprocating action to form the volume of the material chamber changes, forced one-way valve alternately open or closed motion to force the material discharge.

Stainless steel pneumatic diaphragm pump has the majority of characteristics, is gradually invading the market of other pumps, and occupy a part of it. For example: painting, ceramics industry stainless steel diaphragm pump has occupied the dominant position, and in some other industries, such as environmental protection, wastewater treatment, construction, sewage, fine chemical industry and other fields. It also plays its advantages in various fields:

1, due to the use of air for power, so the flow with the change of back pressure outlet resistance and automatic adjustment, suitable for medium and high viscosity fluids. And the working point of the centrifugal pump is set on the basis of water. If it is used for the fluid with slightly higher viscosity, it needs to support the reducer or frequency conversion governor. The cost is greatly increased, and the same is true for the gear pump.

2, in hazardous, corrosive material processing, diaphragm pump can be completely separated from the material and the outside world.

3, in flammable and explosive environment with pneumatic pump reliable and low cost, such as fuel transmission, because: after grounding can not produce sparks; Second, no heat generation in the work, the machine will not overheat; Third, the fluid will not overheat because the diaphragm pump on the fluid agitation is small.

4, can be used to transport chemical properties more unstable fluid, such as: photosensitive materials, flocculant, etc.

5, in addition to the stainless steel diaphragm pump small volume is easy to move, do not need the foundation, the ground is very small, simple and economical installation. Can be used as mobile material transfer pump.

6, or some tests to ensure that there is no impurity pollution of raw materials.

7, in the site of bad places, such as construction sites, industrial and mining waste water discharge, due to the impurities in the sewage and complex composition, pipeline is easy to plug, so that the electric pump will form too high load, motor heating vulnerable. Pneumatic diaphragm pump can pass through the particles and flow adjustable, pipe blocking automatically stop to unobstructed.
