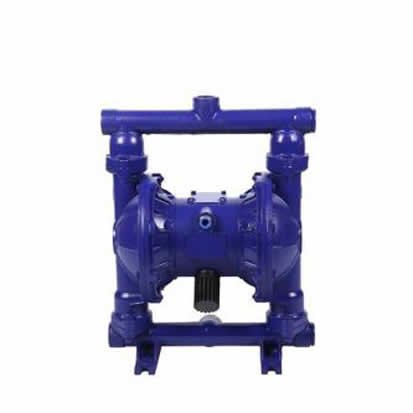

Pneumatic diaphragm pump can improve the suction range of 20 meters, more convenient to use, save energy (explain: to provide energy conversion materials to nature), benefits. Pneumatic diaphragm pump center body components, including the support body, diaphragm, valve and other structures, the air flow through the total intake hole to the center hole, and then from the center hole through the water vapor lubrication hole, valve installation hole, valve, after the outflow from the total air outlet, with the coordination of other components, to achieve the main work of the diaphragm pump.
Pneumatic diaphragm pump high suction energy saving device, including a diaphragm pump, which is provided with an inlet and outlet, and connected with an intake pipe, the intake pipe is connected with an air source input pipe and successively through a manual ball valve, air filter pressure regulating valve and leakage ball valve and the diaphragm pump is connected with the air inlet pipe, pneumatic diaphragm pump is connected with a pipeline at the inlet, The other opening of the pipeline is vertically down and connected with the end of a tee, the second end of the tee is connected with the air source input pipe through a gas pipe, and the gas pipe is provided with a manual ball valve and an air filter pressure regulating valve, the third end of the tee is connected with a vertical downward second pipe, the second pipe is provided with a bottom valve.
Pneumatic diaphragm pump using water vapor self lubrication, can continue to work for a long time, at the same time can realize automatic heat dissipation, not stuck, easy maintenance; The connection between the support body and the diaphragm has good sealing and fastness, which can prevent the liquid from contacting the central shaft, and there will be no danger of inflammable and explosive. The pneumatic diaphragm pump can be started for sulfuric acid (chemical formula: H2SO4), food and other oils and chemicals with high corrosion (meaning: refers to decay, disappearance, erosion, etc.). The installation stability between the support body and the valve is high, which increases the service cycle (lifetime) of the pneumatic diaphragm pump in the working process.
Pneumatic diaphragm pump for high-tech electronics industry and strong corrosion (interpretation: refers to decay, disappearance, erosion, etc.) medium (plays a decisive role in the development of the whole plastic pneumatic double diaphragm pump, its material is PTFE, conductive PTFE, PE, conductive PE, SS316L, Suitable for high pollution, high risk, strong acid, low noise (decibel (dB)) and clean room of the use of pneumatic double diaphragm pump. Pneumatic diaphragm pump especially Printed Circuit Board (Printed Circuit Board), semiconductor (semiconductor) industry, packaging industry, super corrosive transportation and optoelectronics and other high-tech industries for.
Since the 1990s, the chemical industry and the rapid development of the domestic market, enterprises and manufacturers have more requirements and stringent for the delivery of corrosive media (substances that play a decisive role). The leakage of toxic and corrosive media has greatly affected the safety of operators and environmental pollution. Pneumatic diaphragm pump can effectively prevent and solve such problems. Pneumatic diaphragm pump has a barrier chamber system and diaphragm detector, when the diaphragm is damaged, the signal is sent to the control (control) device, and then the controller issued instructions for shutdown or alarm action.
The obstacle chamber system has two diaphragms and two controls. The diaphragm is filled with ultra-pure liquid, when the inner diaphragm contact with the medium (play a decisive role in the matter) damaged, pneumatic diaphragm pump pumping medium and ultra-pure liquid mixed to change its conductivity, the change of transducer (transducer) signal sent to the controller. When the outer diaphragm is damaged, the signal is also transmitted to another controller through the sensor, which can prevent serious consequences caused by the damage of the diaphragm and the leakage of the medium. Diaphragm detector is the sensor installed in the silencer, when any side of the diaphragm is damaged, the medium flows into the silencer, at this time the pneumatic diaphragm pump sensor can be sensed signal transmission to the controller for relevant control.
In general, pneumatic diaphragm pump in the transmission of special or high purity media (decisive substances) as far as possible (maybe) reduce media leakage caused by unnecessary pollution and waste, if necessary, by using the above two functions of electronic pneumatic diaphragm pump to ensure the safety of operators, the environment and media pollution, Therefore, this kind of pneumatic diaphragm pump can be widely used in the transportation of special chemical media.
