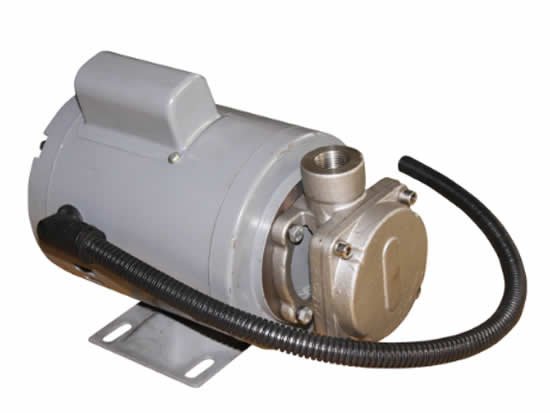

Fryer Cooking Hot Oil Pump

Description

Hot Oil Cooking Pump, Fat Fryer / Filter, with close coupled Motor HP 1/2. Close Coupled Roller Pumps.
Pumps can operate bi-directionally (40 PSI max. in reverse operation).
Maximum capacity 5.8GPM, maximum temperature 250 degrees Celsius
roller pumps offers unmatched reliability and value for permanent and portable, continuous-duty operation. In addition, they are ideally suited for reclaiming waste cooking oils and for use in oil management systems.

Ideal for a wide range of commercial fat fryer hot oil cooking, filtering, or waste oil rendering applications.

This pump can also be used in non-NSF hot oil applications with non-particulate and non-abrasive fluids compatible with pump wet-end construction component materials.

Features:

• Pumps meet NSF-listed standards including NSF-accepted paint for hot oil cooking applications.
• Pumps can operate bi-directionally.
• Pressures to 40 PSI with configured motors.
• Flows to 8.2 GPM.
• Operating temperatures to 375° F.
• Suction lift capabilities up to 7.5 feet of head.

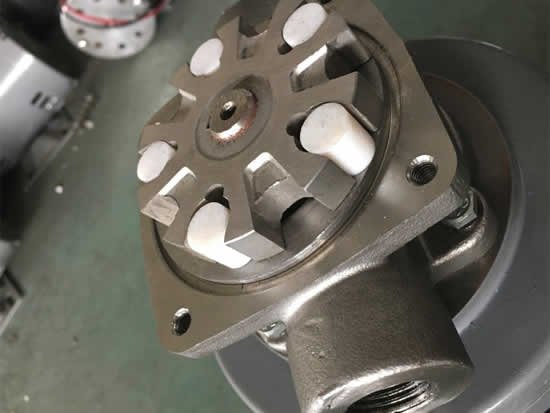

• Non-clogging Teflon roller design
• Not for use with water-based fluids.
• AC ODP single-phase motors have thermal overload protection.
• Ports can be rotated vertically or horizontally

Performance:

Motor Specification:

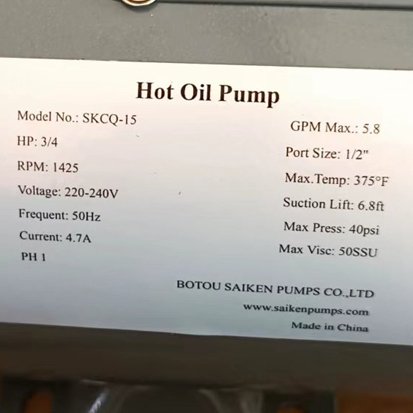

Model	Motor	Voltage	Amps	Motor Phase	Thermal Overload Protection	Motor RPM	Hz	Motor Shaft
SKCQ-15	1/2HP	110V	10.8	1	YES	1450RPM	60	SS
		220V	5.1	1	YES	1450RPM	50	SS

Pump Construction (wet end):

Model	Inlet&Outlet	Body Cover & Rotor	Rollers	Seals & O-rings
SKCQ-15	1/2″	Cast Iron	Teflon	Viton
SKCQ-15S	1/2″	Stainless Steel 304	Teflon	Viton

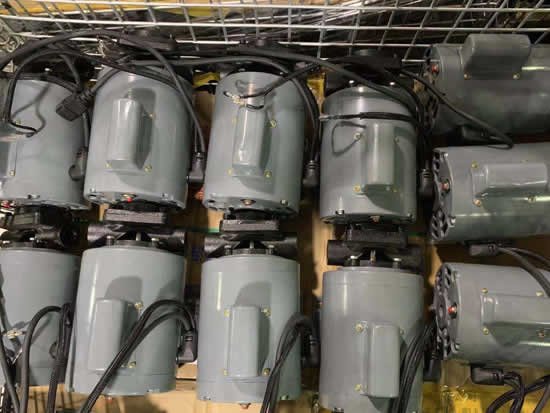

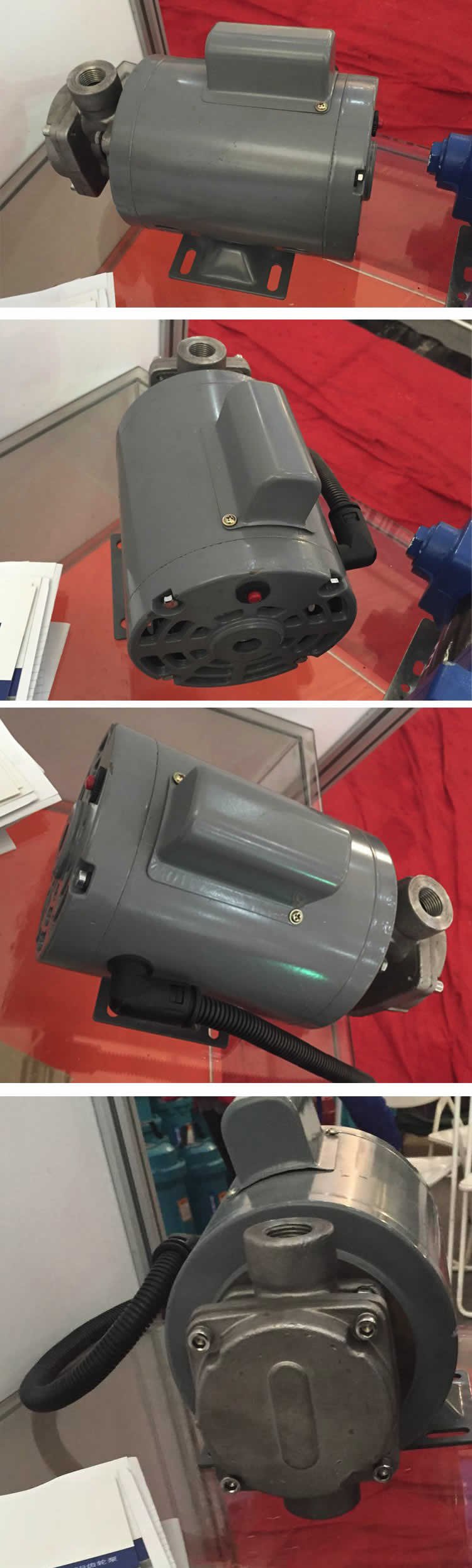

DETAILED PICTURES:

---
