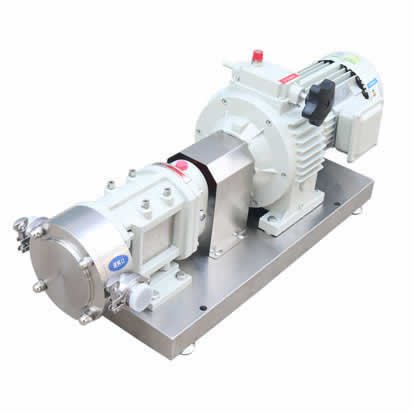

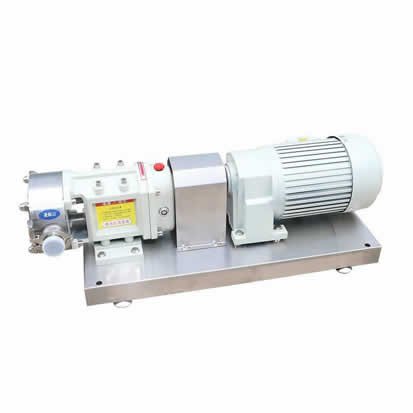

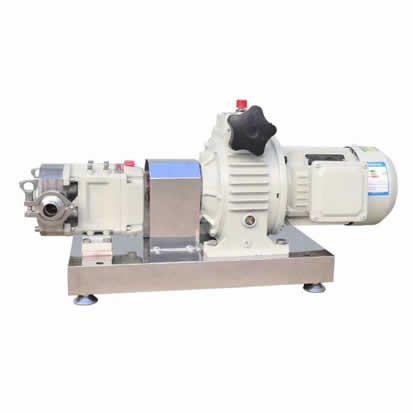

Food grade rotary lobe pump for jelly

Description

China Food grade rotary lobe pump for jelly,jelly transfer pumps manufacturer!

Jelly is water, sugar or starch sugar as the main raw materials, supplemented by thickening agent and other food additives, add or do not add fruit and vegetable products, milk and dairy products and other raw materials, by sol, deployment, filling, sterilization, cooling and other processes processed from gelatin food. There are many kinds of jellies: peach pulp jelly, orange jelly, orange jelly, lemon jelly, blueberry pulp jelly, juice jelly, grape jelly, pineapple jelly, mango pudding, aloe and lychee coconut jelly, lychee pudding, apple jelly, assorted jelly…

Saiken food grade Lobe pumps are used in a wide range of processes. Their reliable low shear flow characteristics are ideal for conveying starch paste, ketchup, chocolate, syrup, honey, jam, sauce products and other media. We select pumps according to your medium characteristics and process requirements to bring the best pump for your critical process, to your and your customers’ satisfaction.

Technical specifications:

◆ Maximum flow: 80m3 / H
◆ Maximum pressure: 10bar
◆ Maximum temperature: 150 ℃
◆ Maximum speed: 960 rpm
◆ Material: ASTM 304/316L, 1.4404
◆ Horizontal TUL
◆ Vertical TUR
◆ Butterfly rotor (standard)
◆ Mechanical seal: Single mechanical seal (standard) double mechanical seal (option) Material SIC / SIC, TC / TC
◆ Suitable for food processing, chocolate, beverages, juices, dairy products, cosmetics, pharmaceutical industries,CIP cleaning and SIP sterilization

Product Name:	LP Series Hygienic Lobe Pumps
Material Science:	SS304 / SS316L
sealing material:	EPDM (Standard, FDA Approval)
Maximum flow:	2~1110GPM
Maximum pressure:	4~10bar
Maximum permissible fluid temperature:	100°C(212°F)/ 200°C(392°F) -water-cooling
Specification of power supply:	110V,220V,240V,380V,400V,415V,440V 50hz / 60hz
Connection type:	Fast clamping, flange, thread, SMS, barb, square port
Motor power:	1~30kw
Entry/Exit location:	Horizontal or vertical
Maximum viscosity:	1×1000000CST
Optional criteria:	DIN,SMS,3A,RJT,ISO / IDF
Scope of application:	Dairy products, food, beverages, pharmacies, cosmetics, etc.
Maximum diameter:	1″/1.2″/1.5″/2″/2.5″/3″/4″/6″
Rotor type:	Single leaf, double leaf, three leaf, four leaf, axe head, spiral
Sealing material:	EPDM (standard, FDA approved)
Sealing options:	PTFE/hygienic single mechanical seal / double mechanical seal with cooling system
Packaging details:	Plywood box or custom. Or according to customer

Saiken rotary lobe pumps are widely used in the food industry. mainly because of the following characteristics:
■High sanitation: The wetted parts are manufactured in stainless steel 304 316 or 316L.
■High smoothness: surface roughness is below 0.8  μm, confirming to 3A, EHEDG, FDA standard.
■Meet CIP and SIP requirements.
■Simple disassembly and asembly, easy maintenance and few wearing parts.
■Low speed, low shear, no damage to the pumped products.

Saiken lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.

Technological parameter:

Model	LITER/100REV	SIZE mm	PRESSURE RATING BAR	MAXIMUM SPEED RPM	POWER kw
LP-6	6	25	10	960	0.75
LP-9	9	32	10	960	1.1
LP-18	18	40	10	960	1.5
LP-36	36	50	10	720	2.2
LP-60	60	65	10	720	4
LP-105	105	80	10	600	7.5
LP-180	180	100	10	600	11
LP-250	250	125	10	600	15
LP-325	325	150	10	400	18.5
LP-525	525	150	10	400	22
LP-700	700	200	10	400	37

SAIKEN is a Chinese leading manufacturer in Food Grade Sanitary Lobe Pumps and Automatic filling machine.
Providing its customers with customized pumping and
mixing solutions and solving their problems during the production.
Saiken pumps and Automatic filling machine widely used in food, dairy, beverages,
chemical, pulp&paper, soaps&detergents, pharmaceuticals, pesticide,
coatings etc. We are looking forward to be partner with you.
