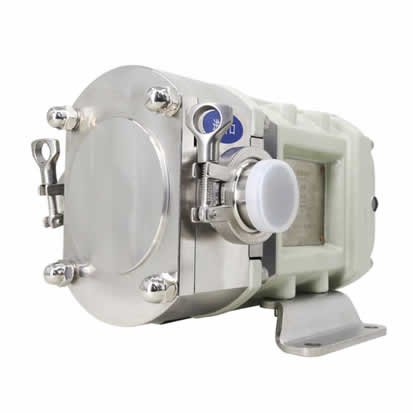

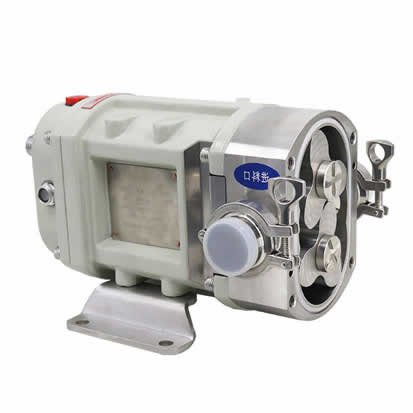

Sanitary bare shaft rotary lobe pump with SS316L

Saiken Bare shaft rotary lobe pump be also known as tomato paste pump, chocolate transfer pump, cosmetic cream transfer pump, mango pulp transfer pump, shower gel pump, yogurt transfer pump in china.Range in size from 1″ to 8″. Material Grade SS304 SS316L,The flow range is 6-700L/100r

Description

The Saiken Positive Displacement Lobe Pump with sanitary design suitable for use in the dairy, food-processing, beverage, cosmetics, pharmaceutical and fine chemicals industries. This sanitary lobe pump is perfect for managing all kinds of fluid, of either low or high viscosity, as well as for filtering and bottling applications. It is bare shaft rotary lobe pump. It is made of sanitary stainless steel pump casing and cover, and tri-lobe or twin-lobe rotors with sanitary attachment.

Sanitary bare shaft rotary lobe pump with SS316L-China Saiken Pumps

Working Principle

Sanitary bare shaft rotary lobe pump with SS316L-China Saiken Pumps

Saiken Sanitary Rotary Lobe Pumps are used in a wide range of processes. Their reliable low shear flow characteristics are ideal for conveying starch paste, ketchup, chocolate, syrup, honey, jam, sauce products and other media. We select pumps according to your medium characteristics and process requirements to bring the best pump for your critical process, to your and your customers’ satisfaction.

Sanitary bare shaft rotary lobe pump with SS316L-China Saiken Pumps

Technical specifications:

◆ Maximum flow: 80m3 / H
◆ Maximum pressure: 10bar
◆ Maximum temperature: 150 ℃
◆ Maximum speed: 960 rpm
◆ Material: ASTM 304/316L, 1.4404
◆ Horizontal TUL
◆ Vertical TUR
◆ Butterfly rotor (standard)
◆ Mechanical seal: Single mechanical seal (standard) double mechanical seal (option) Material SIC / SIC, TC / TC
◆ Suitable for food processing, chocolate, beverages, juices, dairy products, cosmetics, pharmaceutical industries,CIP cleaning and SIP sterilization

Product Name:LP Series Hygienic Lobe Pumps
Material Science:SS304 / SS316L
sealing material:EPDM (Standard, FDA Approval)
Maximum flow:2~1110GPM
Maximum pressure:4~10bar
Maximum permissible fluid temperature:100°C(212°F)/ 200°C(392°F) -water-cooling
Specification of power supply:110V,220V,240V,380V,400V,415V,440V 50hz / 60hz
Connection type:Fast clamping, flange, thread, SMS, barb, square port
Motor power:1~30kw
Entry/Exit location:Horizontal or vertical
Maximum viscosity:1×1000000CST
Optional criteria:DIN,SMS,3A,RJT,ISO / IDF
Scope of application:Dairy products, food, beverages, pharmacies, cosmetics, etc.
Maximum diameter:1″/1.2″/1.5″/2″/2.5″/3″/4″/6″
Rotor type:Single leaf, double leaf, three leaf, four leaf, axe head, spiral
Sealing material:EPDM (standard, FDA approved)
Sealing options:PTFE/hygienic single mechanical seal / double mechanical seal with cooling system
Packaging details:Plywood box or custom. Or according to customer

Saiken rotary lobe pumps are widely used in the food industry. mainly because of the following characteristics:
■High sanitation: The wetted parts are manufactured in stainless steel 304 316 or 316L.
■High smoothness: surface roughness is below 0.8  μm, confirming to 3A, EHEDG, FDA standard.
■Meet CIP and SIP requirements.
■Simple disassembly and asembly, easy maintenance and few wearing parts.
■Low speed, low shear, no damage to the pumped products.

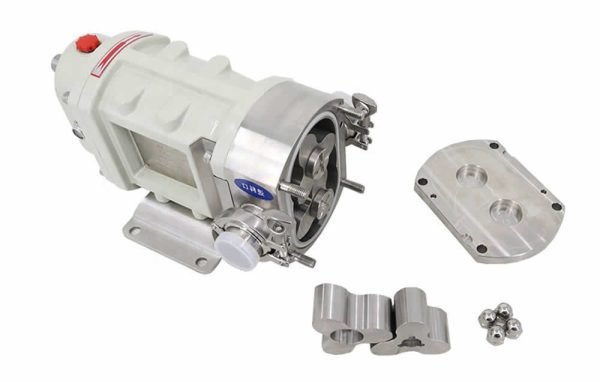

Saiken lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.

Sanitary bare shaft rotary lobe pump with SS316L-China Saiken Pumps
Sanitary bare shaft rotary lobe pump with SS316L-China Saiken Pumps

Technological parameter:

ModelLITER/100REVSIZE
mm
PRESSURE RATING
BAR
MAXIMUM SPEED
RPM
POWER
kw
LP-6625109600.75
LP-9932109601.1
LP-181840109601.5
LP-363650107202.2
LP-606065107204
LP-10510580106007.5
LP-1801801001060011
LP-2502501251060015
LP-3253251501040018.5
LP-5255251501040022
LP-7007002001040037

SAIKEN is a Chinese leading manufacturer in Rotary Lobe Pumps and Automatic filling machine.
Providing its customers with customized pumping and
mixing solutions and solving their problems during the production.
Saiken pumps and Automatic filling machine widely used in food, dairy, beverages,
chemical, pulp&paper, soaps&detergents, pharmaceuticals, pesticide,
coatings etc. We are looking forward to be partner with you.
