Food Grade Sanitary Lobe Pumps for beer wort and beer brewing

Beer wort is a less stable colloidal solution. Avoid contact with air during transportation, otherwise it will easily deteriorate. Using our Food Grade Sanitary Lobe Pumps can effectively isolate the air, ensure a sealed environment, no impurity pollution, maintain the quality and taste of beer, and achieve the effect of high efficiency and energy saving


Food Grade Sanitary Lobe Pumps for beer wort and beer brewing

Food Grade Sanitary Lobe Pumps for beer wort and beer brewing-China Saiken Pumps

Beer is a kind of alcoholic beverage brewed with wheat buds and barley malt as the main raw materials, and hops, through liquid gelatinization and saccharification, and then through liquid fermentation.Beer has a low alcohol content and contains carbon dioxide, many amino acids, vitamins, low molecular sugars, inorganic salts and various enzymes. Among them, low molecular sugars and amino acids are easily digested and absorbed, generating a lot of heat energy in the body, so beer is often called “liquid bread”. One liter of beer at 12°Bx can produce 3,344 kilojoules of heat, which is equivalent to three to five eggs or 210 grams of bread. A light manual worker who drinks one liter of beer a day can get one-third of the calories he needs.Wort, brewed from a liquid extracted during the saccharification process of beer or whiskey. The sugars contained in the wort, the most important of which are maltose and maltotriose, are fermented by brewer’s yeast to produce alcohols. Wort also contains key amino acids that provide yeast with nitrogen, as well as more complex proteins that help maintain the beer’s head and flavor.

Food Grade Sanitary Lobe Pumps for beer wort and beer brewing-China Saiken Pumps

Saiken food grade Lobe pumps are used in a wide range of processes. Their reliable low shear flow characteristics are ideal for conveying starch paste, ketchup, chocolate, syrup, honey, jam, sauce products and other media. We select pumps according to your medium characteristics and process requirements to bring the best pump for your critical process, to your and your customers’ satisfaction.

Food Grade Sanitary Lobe Pumps for beer wort and beer brewing-China Saiken Pumps

Technical specifications:

◆ Maximum flow: 80m3 / H
◆ Maximum pressure: 10bar
◆ Maximum temperature: 150 ℃
◆ Maximum speed: 960 rpm
◆ Material: ASTM 304/316L, 1.4404
◆ Horizontal TUL
◆ Vertical TUR
◆ Butterfly rotor (standard)
◆ Mechanical seal: Single mechanical seal (standard) double mechanical seal (option) Material SIC / SIC, TC / TC
◆ Suitable for food processing, chocolate, beverages, juices, dairy products, cosmetics, pharmaceutical industries,CIP cleaning and SIP sterilization

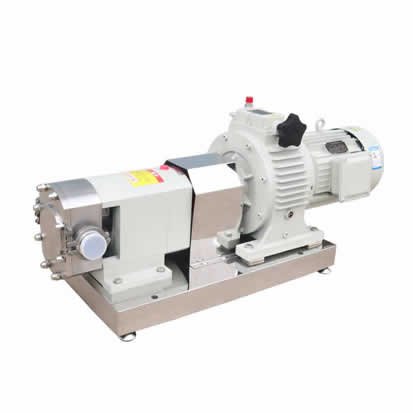

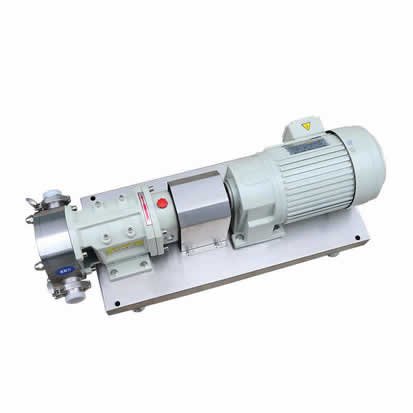

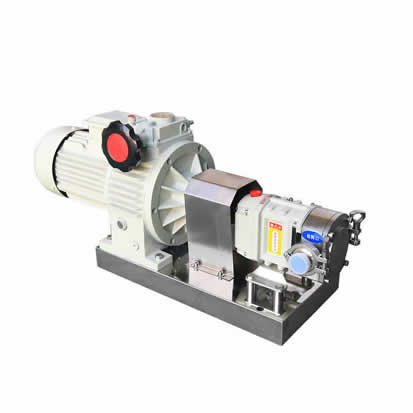

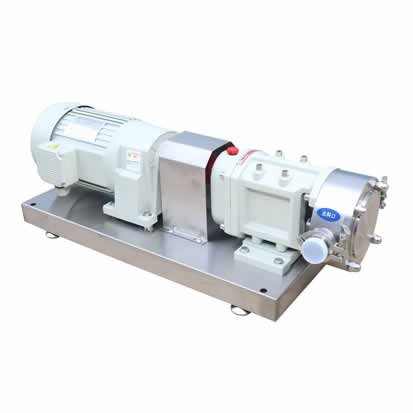

Product Name:LP Series Hygienic Lobe Pumps
Material Science:SS304 / SS316L
sealing material:EPDM (Standard, FDA Approval)
Maximum flow:2~1110GPM
Maximum pressure:4~10bar
Maximum permissible fluid temperature:100°C(212°F)/ 200°C(392°F) -water-cooling
Specification of power supply:110V,220V,240V,380V,400V,415V,440V 50hz / 60hz
Connection type:Fast clamping, flange, thread, SMS, barb, square port
Motor power:1~30kw
Entry/Exit location:Horizontal or vertical
Maximum viscosity:1×1000000CST
Optional criteria:DIN,SMS,3A,RJT,ISO / IDF
Scope of application:Dairy products, food, beverages, pharmacies, cosmetics, etc.
Maximum diameter:1″/1.2″/1.5″/2″/2.5″/3″/4″/6″
Rotor type:Single leaf, double leaf, three leaf, four leaf, axe head, spiral
Sealing material:EPDM (standard, FDA approved)
Sealing options:PTFE/hygienic single mechanical seal / double mechanical seal with cooling system
Packaging details:Plywood box or custom. Or according to customer

Saiken rotary lobe pumps are widely used in the food industry. mainly because of the following characteristics:
■High sanitation: The wetted parts are manufactured in stainless steel 304 316 or 316L.
■High smoothness: surface roughness is below 0.8  μm, confirming to 3A, EHEDG, FDA standard.
■Meet CIP and SIP requirements.
■Simple disassembly and asembly, easy maintenance and few wearing parts.
■Low speed, low shear, no damage to the pumped products.

Saiken lobe pumps basically consist of two lobe rotors, which rotate synchronously driven by a pair of synchronous gears in the gearbox. The rotors are driven by the main shaft and sub-shaft to rotate in a synchronous reverse direction, which changes the pump capacity, builds up high vacuum and discharge pressure, thus an efficient pumping is formed. Gap is kept between the rotors and between the pump casing, no friction, long life, no damage, no physical and chemical reaction to the pumped products.

Food Grade Sanitary Lobe Pumps for beer wort and beer brewing-China Saiken Pumps
Food Grade Sanitary Lobe Pumps for beer wort and beer brewing-China Saiken Pumps

Technological parameter:


SAIKEN is a Chinese leading manufacturer in Food Grade Sanitary Lobe Pumps and Automatic filling machine.
Providing its customers with customized pumping and
mixing solutions and solving their problems during the production.
Saiken pumps and Automatic filling machine widely used in food, dairy, beverages,
chemical, pulp&paper, soaps&detergents, pharmaceuticals, pesticide,
coatings etc. We are looking forward to be partner with you.
