1/2″ Air-Operated Double Diaphragm Pump made of Aluminium alloy

1/2 inch Air operated double diaphragm Pump Max Capacity 5.8GPM,construction stainless steel
/plastic/Aluminium alloy/PP/ductile iron/PVDF. Aodd pump Manufacturers from CHINA

Description

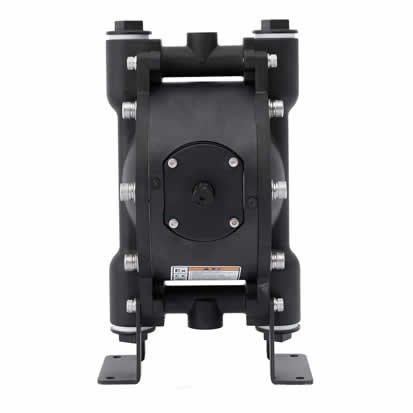

AODD 1/2″ Air-Operated Double Diaphragm Pump made of Aluminium alloy

The 1/2 inch (15 mm) connection and is available in Polypropylene, Kynar (PVDF), Aluminium alloy and Stainless Steel 304 316L and cast steel.Air-operated diaphragm pump features a stall-free low pulsation air valve that provides a smooth and rapid changeover.

Features

1/2 inch (15 mm) inlet/outlet
Delivery up to 5.8 gpm (22 lpm)
Easy-to-service air valve and ball checks

Benefits

Quick and easy assembly and disassembly design
Easy to service air valve and ball checks
Split manifold option to pump multiple fluids without mixing
Every pump is tested prior to shipping

Overview

Maximum Fluid Flow: 5.8 gpm (22 l/min)
Maximum Fluid Discharge Pressure: 100 psi (7 bars, 0.7 MPa)
Maximum Size Pumpable Solids: 1/16 inch (1.5 mm)
Fluid Displacement Per Cycle: 0.016 g (0.06 litres)
Air inlet and outlet caliber: 1/4 inch

Wetted parts Material

Cast SteelDuctile IronAluminium AlloyEngineering plasticsStainless steel 304Stainless steel 316Stainless steel 316LPVDF
GQLSPP316P316LF

Diaphragm Material

ButyronitrileSantoprenePolyetherTeflonSuper Teflon
DAMTN
EPDMSantoprene+TeflonSantoprene+Super TeflonPolyether+TeflonPolyether+Super Teflon
STNKH

Valve Ball

ButyronitrileSantoprenePTFEStainless steel 304Stainless steel 316Stainless steel 316LEngineering plastics
DAFPP316P316LS

Valve Seat

ButyronitrileSantoprenePTFEStainless steel 304Stainless steel 316Stainless steel 316LEngineering plastics
DAFPP316P316LS
1/2″ Air-Operated Double Diaphragm Pump made of Aluminium alloy-China Saiken Pumps


Air-Operated Double Diaphragm Pump Datasheet

ModelInlet/Outlet
(INCH)
Max.Capacity
(GPM/LPM)
Max.Head
(M)
Outlet pressure
(BAR)
Air inlet
(INCH)
SKQ-103/8″ (10 mm)5.8/227071/4
SKQ-151/2″ (15 mm)5.8/227071/4
SKQ-203/4″ (20 mm)15/577071/4
SKQ-251″ ( 25 mm)15/577071/4
SKQ-25A1″ (25 mm)31/116848.41/2
SKQ-321.2″ (32 mm)40/151848.41/2
SKQ-401.5″ (40 mm)40/151848.41/2
SKQ-40A1.5″ (40 mm)100/378.5848.41/2
SKQ-502″ (50 mm)100/378.5848.41/2
SKQ-652.5″ (65 mm)100/378.5848.41/2
SKQ-50A2″ (50 mm)150/568848.41/2
SKQ-803″ (80 mm)150/568848.41/2
SKQ-1004″ (100 mm)150/568848.41/2
SKQ-80A3″ (80 mm)275/1041848.43/4
SKQ-1255″ (125 mm)275/1041848.43/4

Air-Operated Double Diaphragm Pumps are designed to handle moderately abrasive fluids and suspended solids for intermittent/on-demand and portable applications. They can easily pump slurry, solvents, and high viscosity liquids such as paints and inks. Pump with full bolt structure and wear – resistant corrosion – resistant materials.

If you need more information about AODD pump, please contact us!
